Overview

Top Previous Next



Reportizer is a database-reporting tool. It simplifies creating, modifying and printing database reports.

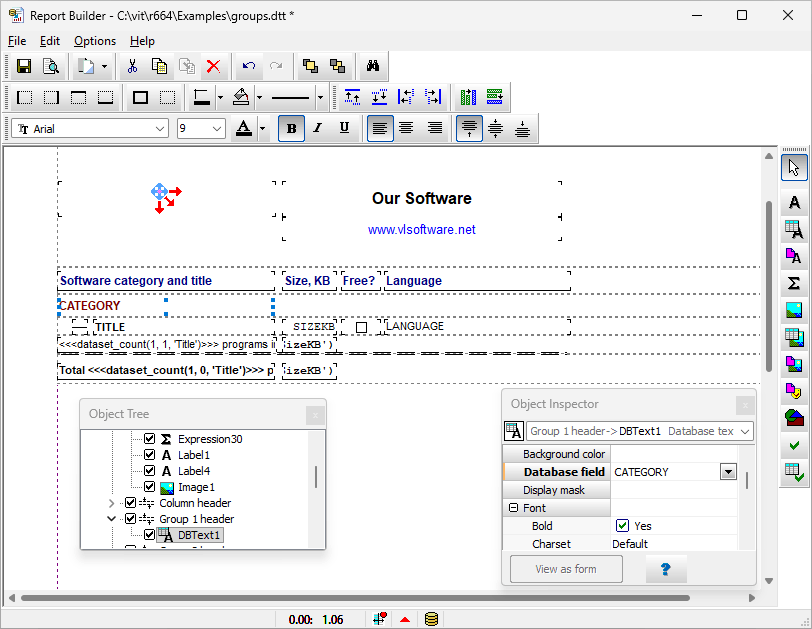

Reports can be edited in convenient visual report builder or in text mode. Report templates can be saved to files (so called dynamic reports, usually with .dtt extension). Reportizer reports support expressions, grouping, calculating fields etc. There is an ability to load reports from command line with set of options.

Reports can be printed or exported to file (HTML, XLS, TXT).

Reportizer can build file system reports and database reports.

Reportizer Web site:

http://www.reportizer.net

Understanding Reportizer reports

Reportizer reports are based on report engine, called vlReport (Vitaliy Levchenko report).

Reportizer dynamic report is a set of data and rules, which specifies where to find the data for the report, how the data should be extracted and how the data should be displayed and printed. These definitions can be saved to report template file.

Report consists of its description, a description of the report data source (database table or query), and a set of visual report objects to display (and print) the data from data source or predefined text, graphics, shapes etc.

The visual part of the report consists of tree levels:

1.Page. The report page is a container for all other report visual objects, such as bands and text or graphic objects. The page has several its own properties (size, orientation etc.).
2.Bands. The bands are horizontal sections, which are outputted each after other. The bands are containers for visual objects of the third level (the text and graphic objects). Each band has a set of its own properties (e.g. height, color, output rules etc.). There are several types of bands. The bands output depends on the band type (for example, the Report Title band is outputted only once before all other bands, Data band is outputted for each record in data source etc.).
3.Text and graphic objects, which are placed on the bands or directly on the page. They are outputs specific data (text, text from database, images, shapes, images from database etc.).



Each time the report is printed or previewed, the following steps are performed:

1.The data source is opened (if not opened yet).
2.Report pages are formatted according to the report rules and the data from the data source.
3.Output is started. The bands are outputted (including the objects of each band).

See also
